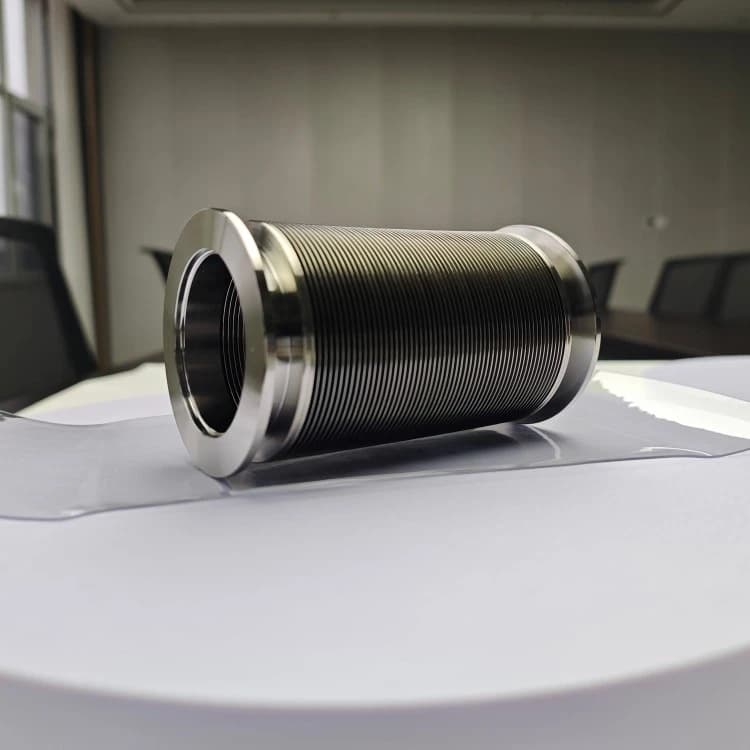

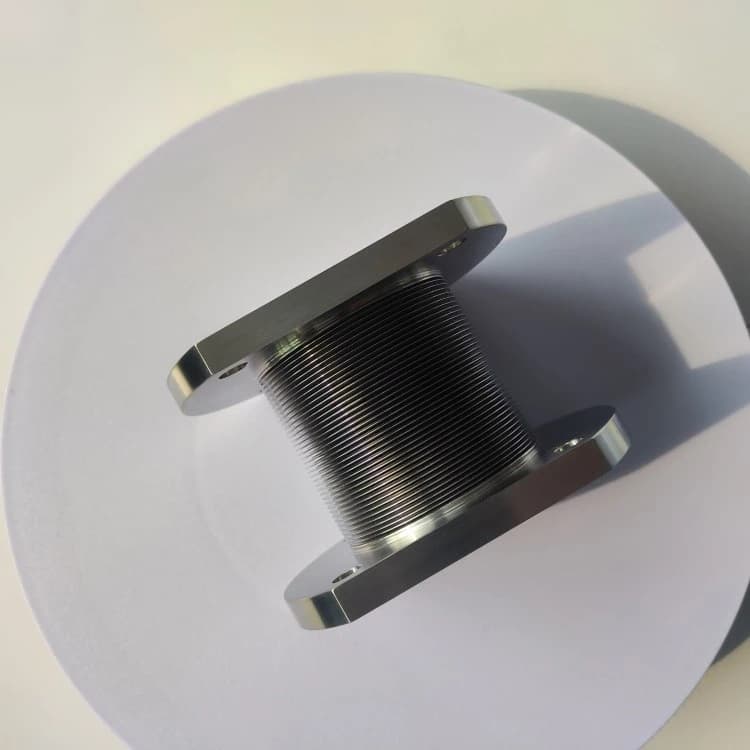

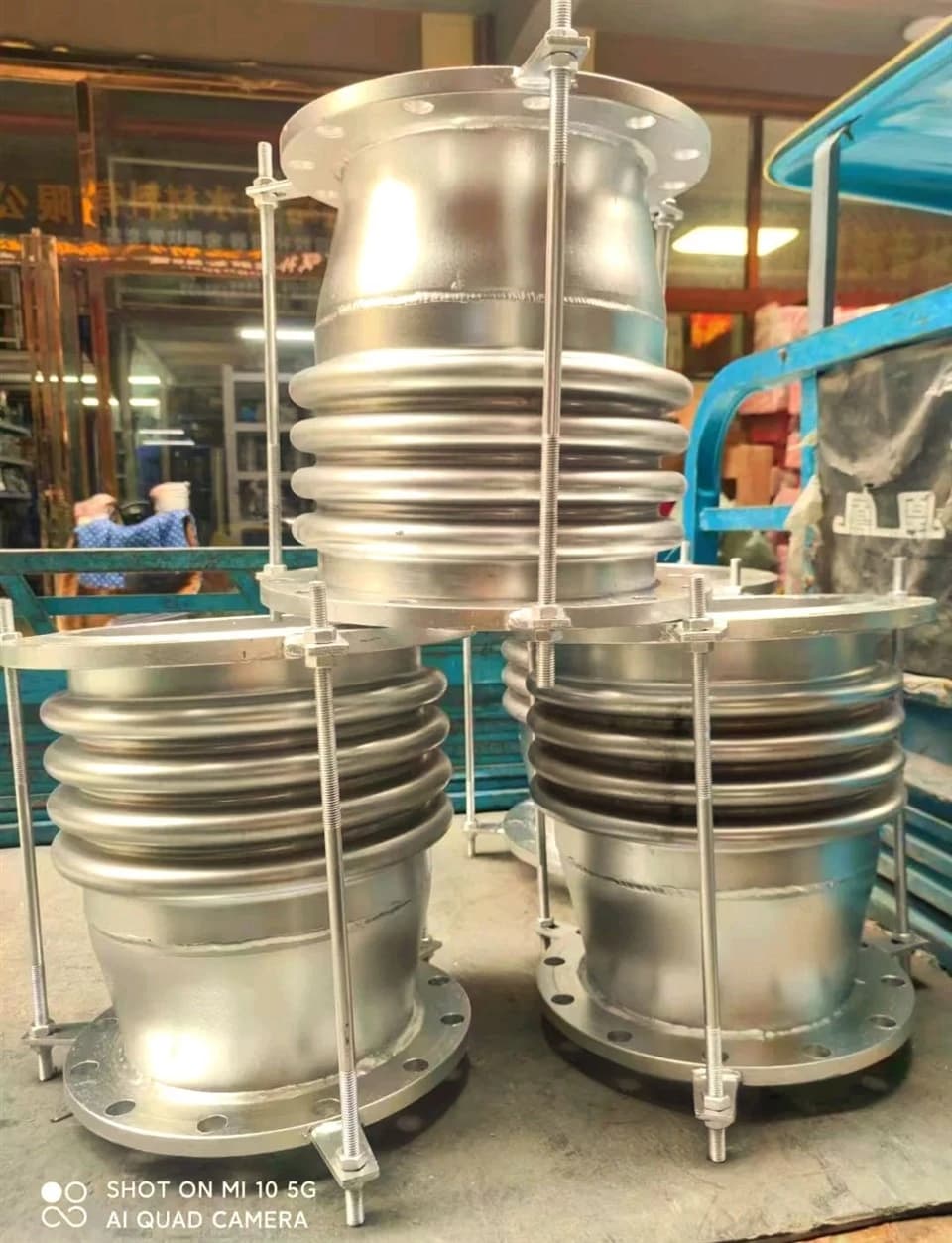

Inconel 625 bellows expansion joints are flexible compensation elements designed for extreme working conditions, using ultra-heat-resistant and corrosion-resistant alloys as their core material. With the excellent performance of the material itself and the deformation compensation capability of the bellows structure, they are widely used in harsh industrial environments such as high temperature, corrosion, and high pressure. They can effectively absorb the stress generated by thermal expansion and contraction and vibration displacement in pipeline systems, ensuring the safe and stable operation of pipelines.

The specifications and models of Inconel 625 bellows expansion joints need to be defined from four core dimensions: dimensional parameters, pressure and temperature ratings, structural type, and performance indicators.

I. Core Dimensions and Specifications (Classified by Nominal Diameter/Outer Diameter) Dimensions are the basic identifiers for specifications and models, and key parameters such as nominal diameter (DN), inner and outer diameters, and length must be clearly specified.

2.Pressure and Temperature Rating Specifications

Pressure and temperature are core indicators for classifying the applicable operating conditions of different models. The design pressure, test pressure, and maximum operating temperature must be clearly specified. Pressure ratings vary significantly between different structural types.

We understand that wholesalers need a stable and reliable supply, therefore we solemnly promise the following for every Inconel 625 bellows expansion joint order:

First, Quality Guarantee: If any Inconel 625 bellows expansion joint does not meet ASME B16.5/EJMA standards-whether due to insufficient temperature resistance, pressure issues, or leaks-we will replace it free of charge.

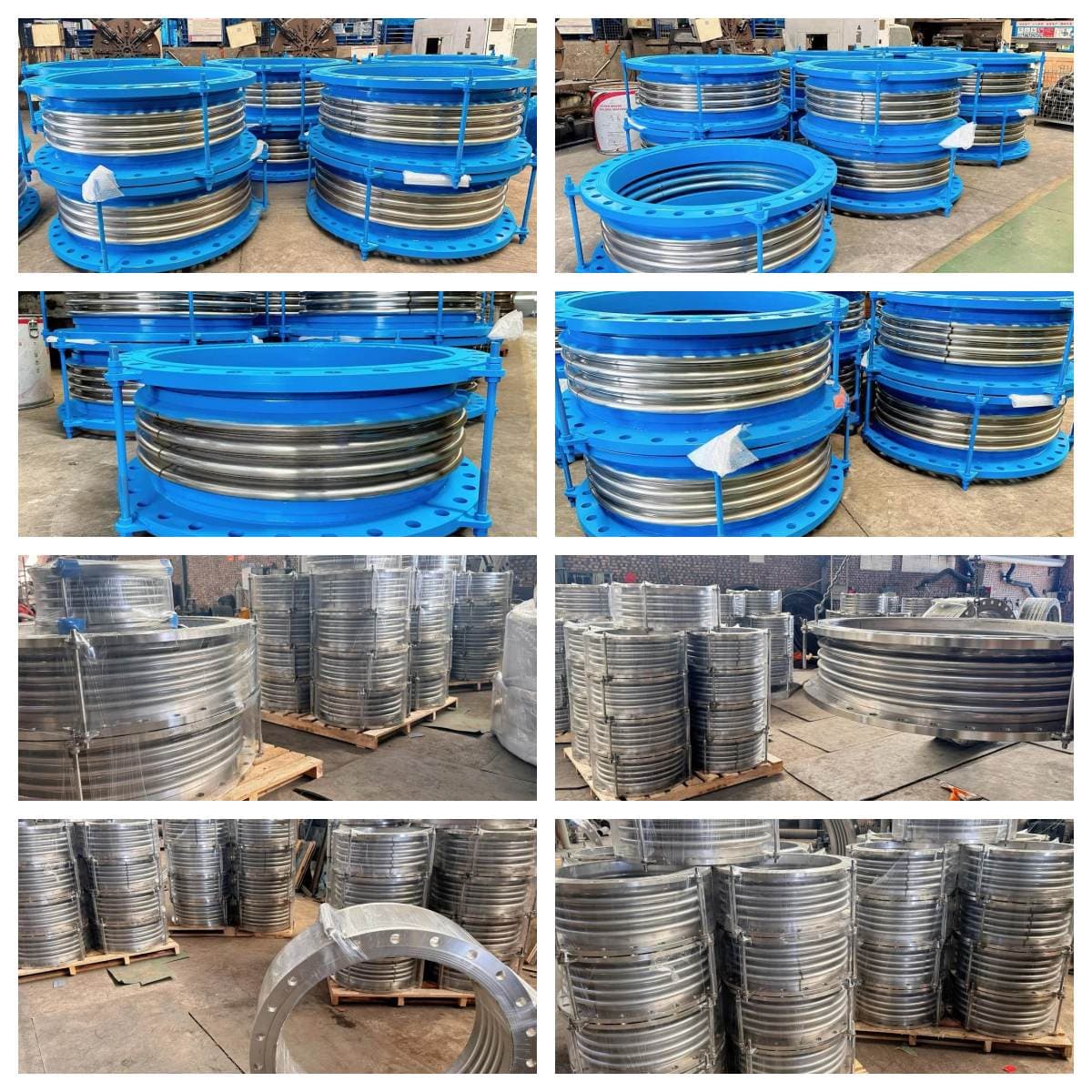

Second, Fast Delivery: We maintain a year-round stock of commonly used sizes (DN100/DN200/DN300) of Inconel 625 bellows expansion joints.

Third, Production Transparency: We have fully automated production lines equipped with CNC forming machines and advanced welding robots. We can provide capacity reports and factory audit videos upon request, allowing you to demonstrate our manufacturing capabilities to your customers.

Fourth, 24/7 Support: If you need assistance with technical specifications, order updates, or matching expansion joints to specific piping systems, they will respond within one hour. We even send you a 1:1 scale sample component free of charge – allowing your customers to test product quality and performance before bulk purchase.

Leveraging its material and structural advantages, this product is widely used in industrial fields with extremely high requirements for "high temperature resistance, corrosion resistance, and high reliability":

1.Coal Chemical Industry: Used in high-temperature coal gas transmission pipelines and coal chemical tail gas treatment systems, it can withstand temperatures of 650-700℃ and corrosion from media such as HCN, NH₃, and tar, compensating for axial displacement of pipelines caused by temperature changes.

2.Oil and Gas & Marine Engineering: Suitable for pipeline systems on offshore platforms and in acidic oil and gas fields, it resists seawater corrosion and H₂S acidic gas corrosion, used for displacement compensation in oil and gas pipelines and heat exchangers.

3.Aerospace & High-Temperature Equipment: As a flexible connector in aircraft engine exhaust systems and high-temperature test benches, it can withstand the impact of high-temperature combustion gases, absorb vibration displacement, and ensure equipment operational stability.

4.Nuclear Power & Energy: Used in nuclear power plant reactor cooling systems and high-temperature boiler pipelines, its radiation corrosion resistance and high-temperature stability meet the stringent requirements of nuclear safety grade equipment.

5.Environmental protection and flue gas treatment: Compatible with flue gas desulfurization systems (absorption towers, flues), resistant to corrosion from sulfur-containing flue gas and acid and alkali sprays, and able to compensate for flue deformation caused by temperature fluctuations.
